FIBC / BIG BAG / JUMBO BAG

The Range of FIBC bags offered by us are as follows :

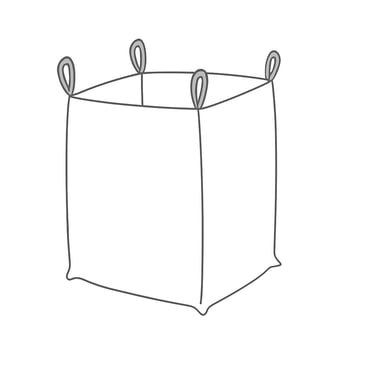

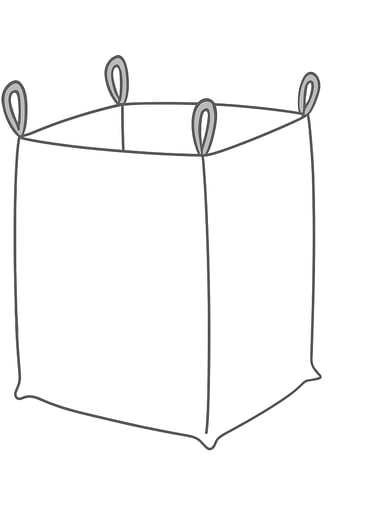

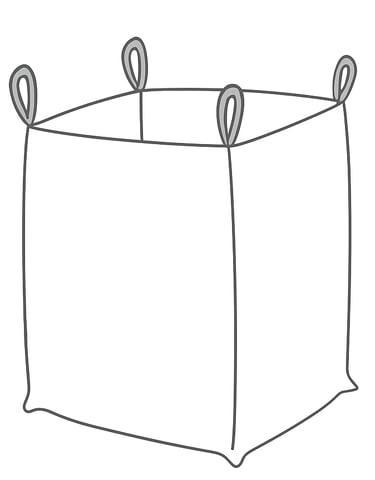

Our Standard FIBC Bags include a wide variety of designs such as Builder Bags, Tunnel Lift Bags, Corner Loop, and Cross-Corner Loop Bags, each available with multiple top and bottom construction options. These bags are engineered for safe handling of loads between 500 kg to 2000 kg, with safety factors of 5:1 or 6:1, offering superior strength and efficiency compared to traditional woven sacks.

Builder Bags are ideal for storing and transporting construction materials like sand, gravel, and stone. They typically feature an open top and flat bottom. Tunnel Lift Bags are an enhanced version, designed to reduce manual labor and loading time, making them a cost-effective choice on job sites.

These standard FIBC bags are also widely used in industries handling chemicals, food products, and pharmaceuticals, providing versatile, reliable, and hygienic bulk packaging solutions.

Technical Specifications:

• Safe Working Load (SWL): 500 kg – 2000 kg

• Safety Factor (S.F.): 5:1 or 6:1

• Fabric Options: Coated / Uncoated

• Liner Options: Tubular / Shaped

• Printing: Up to 4 colors

• Top & Bottom: Multiple customizable options

STANDARD (FIBC BAG)

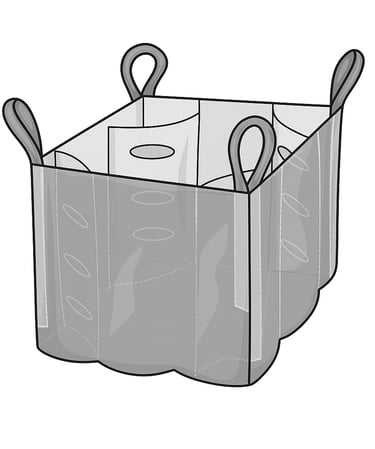

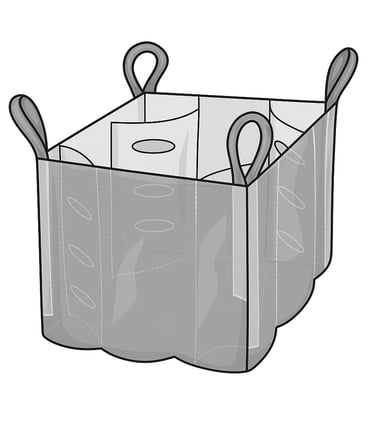

Q Bags, also known as Baffle Bags, are designed with internal polypropylene baffles sewn into all four corners. These baffles help maintain the bag’s square shape during filling and transportation, preventing bulging or collapsing. As a result, Q Bags provide enhanced stability, stackability, and space efficiency.

Key Advantages of Q Bags:

• 30% higher filling efficiency compared to standard FIBC bags due to even material distribution.

• Minimised spillage and better utilisation of warehouse or container space.

• Improved stacking makes storage areas look organised and maximiSes space usage.

• Maintains shape within pallet dimensions, reducing transport and handling issues.

• Ideal for industries requiring clean, stable packaging like Food, Chemical, and Pharmaceutical sectors.

Q BAGS / BAFFLE (FIBC BAG)

FOOD GRADE (FIBC BAG)

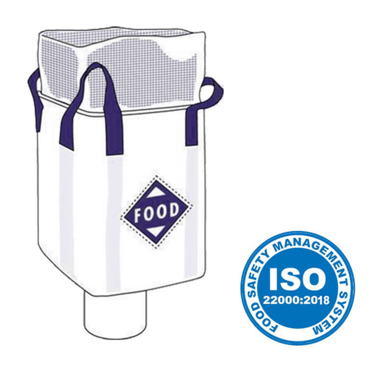

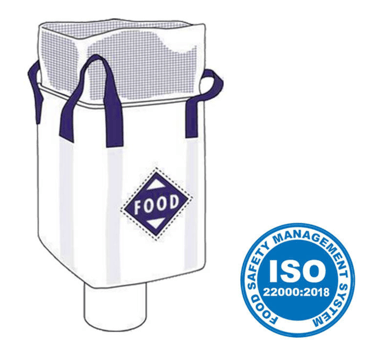

Food Grade FIBC Bags are made from 100% virgin polypropylene in cleanroom facilities, ensuring safe storage and transport of food products without contamination. Compliant with ISO standards.

Key Advantages:

• Safe for direct contact with food.

• Hygienic, contamination-free manufacturing.

• Protects against moisture, pests, and dust.

• Customisable with liners and coatings.

• Ideal for sugar, rice, grains, flour, salt, and other edibles.

Available Options:

• Filling Styles: Top spout, duffle top, open top.

• Discharge Styles: Flat bottom, discharge spout, conical bottom.

• Fabric Options: Uncoated or coated virgin polypropylene.

• Cleanroom Manufacturing: Produced in ISO-certified facility.

• Safety Factor: 5:1 (single-use) or 6:1 (multi-trip).

• Printing: Food-safe ink printing for branding and product information.

• Capacity Range: 500 kg to 2000 kg.

UN CERTIFIED (FIBC BAG)

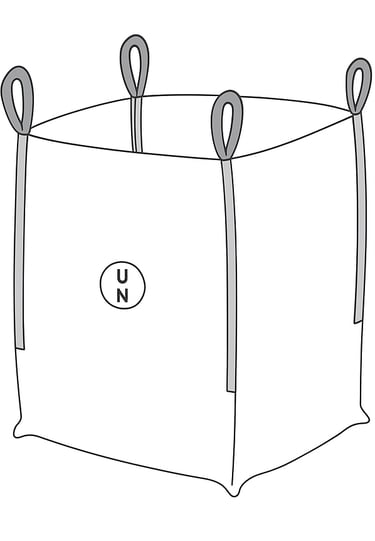

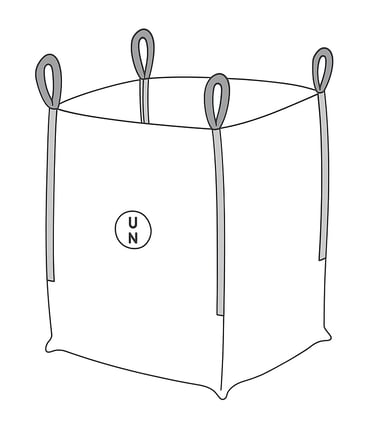

UN Bags are specially designed Flexible Intermediate Bulk Containers (FIBCs) used for the transport of hazardous materials, following the strict safety standards outlined in the UN Orange Book. These bags are rigorously tested and certified to ensure safe handling of dangerous goods across global supply chains.

Types of UN FIBC Bags:

UN Bags are classified into four types based on their construction:

• 13H1 – Woven polypropylene, uncoated, without liner

• 13H2 – Woven polypropylene, coated, without liner

• 13H3 – Woven polypropylene, uncoated, with liner

• 13H4 – Woven polypropylene, coated, with liner

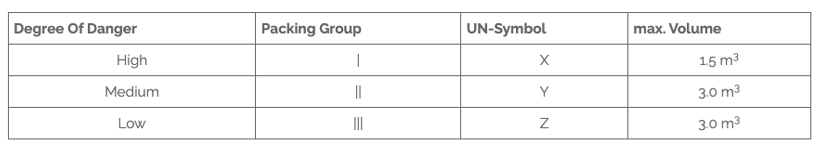

Hazard Level Classifications:

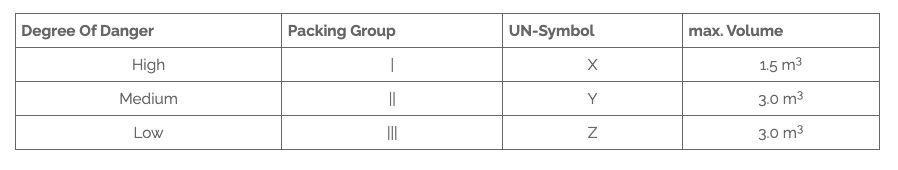

Each UN Bag is assigned a symbol and packing group based on the degree of danger of the material:

Unlike standard FIBCs, UN Bags are not classified by safety factor (e.g., 6:1). Instead, they follow Packing Group-based classifications defined under UN regulations.

UN Testing Standards:

To achieve UN certification, each bag undergoes strict testing at certified labs, including:

• Top Lift Test

• Drop Test

• Stacking Test

• Tear Test

• Righting Test

• Topple Test

A unique test certificate is issued only for bags that meet the required thresholds, and it is valid only for the specified product type and use case.

Available Options:

• SWL Range: 500 kg to 1500 kg

• Fabric: Coated / Uncoated

• Liner: Tubular / Shaped

• Printing: Up to 4 colors

• Top & Bottom Construction: Multiple configurations available

VENTILATED (FIBC BAG)

Ventilated FIBC Bags are specifically engineered for the storage and transport of perishable food items such as potatoes, onions, and other agricultural produce. These bags are made using ventilated woven polypropylene fabric, which allows adequate airflow, helping to prevent moisture accumulation and reduce the risk of mold and spoilage.

Compared to traditional 25/50 kg woven sacks, ventilated bulk bags offer improved efficiency, ease of handling, and better protection throughout the supply chain—from farm to storage to transport.

Available Options:

• Safe Working Load (SWL): 500 kg to 2000 kg

• Safety Factor (S.F.): 5:1 and 6:1

• UN-Coded Bags available

• Fabric: Uncoated, ventilated woven polypropylene

• Liner Options: Tubular / Shaped

• Printing: Up to 4 colors

Efficient & Cost-Effective Bulk Packaging

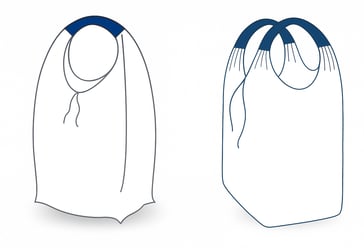

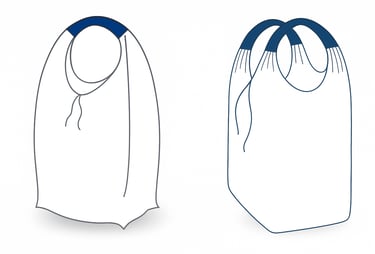

1 & 2 Loop FIBC Bags are made from tubular woven polypropylene fabric, with lifting loops seamlessly integrated into the body. This design reduces additional stitching, improves strength, and lowers costs—making it ideal for agriculture, mining, and construction.

These bags often include inner liners for moisture protection and are available with colored loop sleeves for easy product identification. Despite having fewer lifting points, they offer performance similar to traditional 4-loop FIBC bags.

Available Options:

• SWL Range: 1000 kg to 1500 kg

• S.F.: 5:1 (single use), 6:1 (multi-trip)

• Fabric: Coated / Uncoated

• Liner: Tubular / Shaped / Suspended

• Printing: Up to 4 colors

1 & 2 LOOP (FIBC BAG)

The Globally Preferred Bulk Packaging Solution

4 Loop FIBC Bags are the most widely used and versatile bulk packaging option across industries. Built for strength and efficiency, these bags are ideal for storing and transporting a wide range of products including construction materials, chemicals, food, and agricultural goods.

At PAXIGEN POLY PACK, we offer fully customizable 4 Loop Bags, including Builder Bags, Tunnel Lift Bags, and Corner/Cross-Corner Loop Bags, each with a variety of filling and discharge options like spouts, flaps, duffels, and full-drop bottoms. We also manufacture specialty bags such as Baffle Bags, UN Certified Bags, and Type C / D Bags.

Available Options:

• SWL Range: 500 kg to 2000 kg

• S.F.: 5:1 and 6:1

• Fabric: Coated / Uncoated

• Liner: Tubular / Shaped

• Printing: Up to 4 colors

• Top & Bottom: Multiple filling and discharge choices

4 LOOP (FIBC BAG)

The Safe Solution for Static-Sensitive Materials

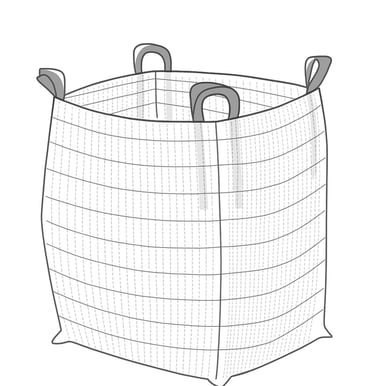

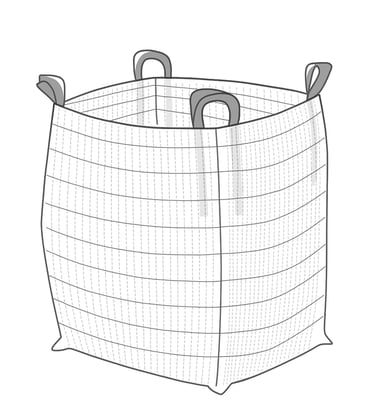

Type C Conductive FIBC Bags are specially designed for safe handling of flammable or electrostatically sensitive products. These bags are made from polypropylene fabric woven with conductive threads (carbon, silver, or steel) forming a groundable mesh that safely dissipates static electricity.

When properly grounded during filling and discharging, Type C bags prevent electrostatic build-up, reducing the risk of ignition in hazardous environments. They are ideal for industries handling powders, chemicals, and combustible materials.

Key Features:

• Conductive fabric with interwoven grounding threads

• Grounding tabs for safe earthing during use

• Customizable top and discharge options

• Supports ancillary loops, hood lifts, stevedore straps

• Rigorously tested for performance and safety

Available Options:

• Filling Options: Open Top, Duffel Top, Filling Spout

• Discharge Options: Spout, Iris Protection, Petal Closure

• Printing: Up to 4 colors

• Fabric: Coated / Uncoated, conductive-grade

CONDUCTIVE (TYPE C) FIBC BAG

ANTI-STATIC (TYPE - B) FIBC BAG

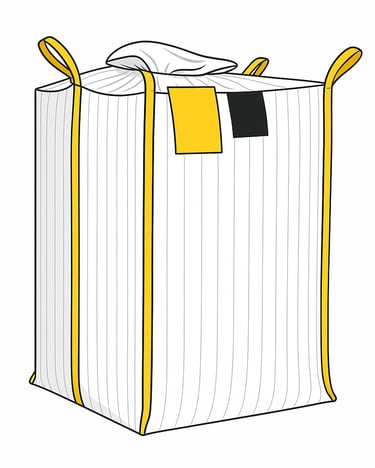

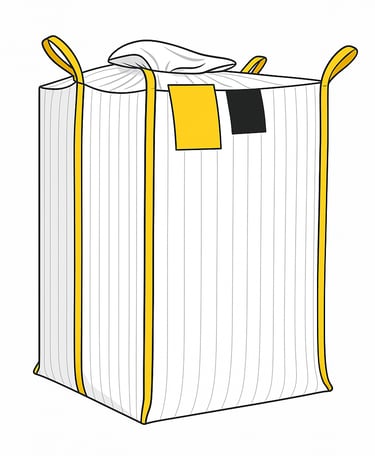

Anti-Static FIBC Bags are designed to safely store and transport materials prone to static buildup. They reduce the risk of sparks or explosions in environments with flammable dust or vapours.

Key Advantages:

• Prevents static charge buildup.

• Safe handling of flammable or combustible products.

• Reduces risk in hazardous environments.

• Compliant with international safety standards.

• Ideal for chemicals, minerals, and fine powders.

Available Options :

• Filling Styles: Top spout, duffle top, open top, cone top.

• Discharge Styles: Flat bottom, discharge spout, conical bottom.

• Lifting Options: Cross corner loops, side seam loops, stevedore straps.

• Safety Factor: 5:1 (single-use) or 6:1 (multi-trip).

• Printing: Up to 4-color custom printing for branding and instructions.

• Testing: IEC 61340-4-4 compliance for breakdown voltage <6 kV.

• Capacity Range: 1000 kg to 2000 kg.

ASBESTOS (FIBC BAG)

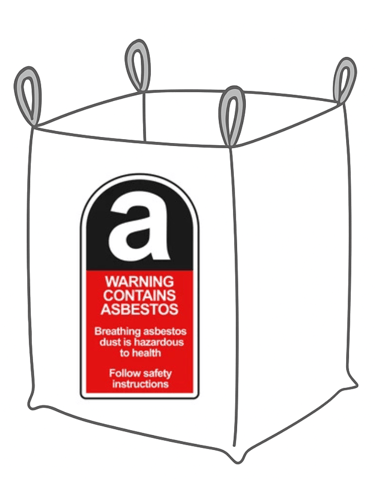

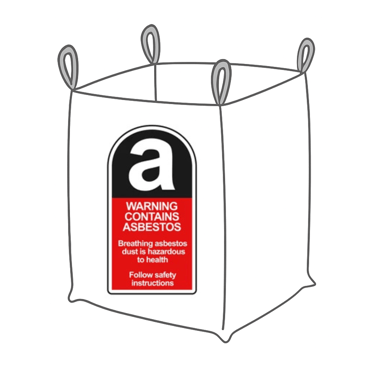

Asbestos FIBC Bags are designed for the safe collection, storage, and transportation of asbestos and other hazardous materials. Made from high-strength, coated polypropylene fabric with dust-proof stitching, these bags ensure no fibre leakage during handling. They comply with international safety regulations, making them ideal for hazardous waste management and disposal.

Key Advantages:

• Prevents release of asbestos fibres and hazardous dust.

• Made from coated PP fabric with dust-proof seams.

• Easy to handle, fill, and seal.

• Complies with hazardous material transport regulations.

• Suitable for both storage and landfill disposal.

Available Options:

• Filling Styles: Top skirt, duffle top, or filling spout.

• Discharge Styles: Flat bottom or discharge spout (with secure sealing).

• Fabric Options: Coated fabric with UV protection.

• Liner Options: Heavy-duty PE liners for double containment.

• Lifting Options: Cross corner loops or side seam loops.

• Markings: Hazard warnings and asbestos labeling as per regulations.

• Capacity Range: 1000 kg to 1500 kg.
